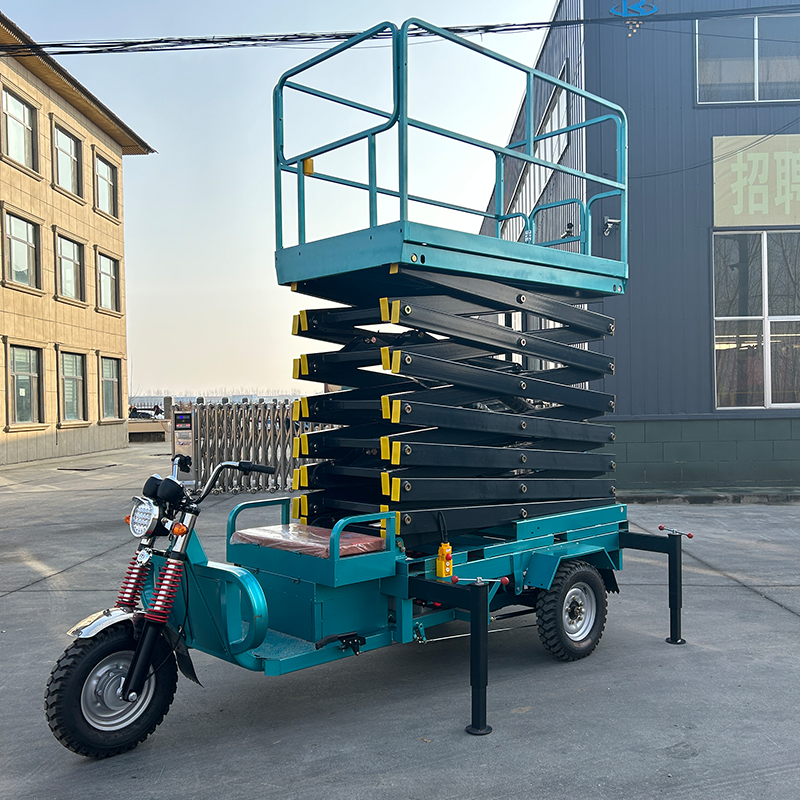

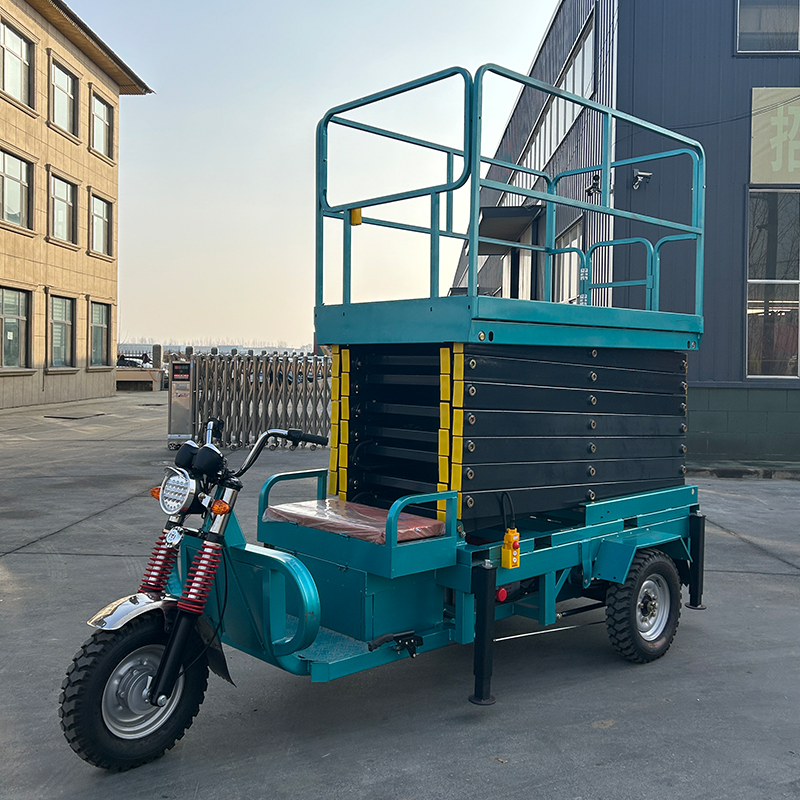

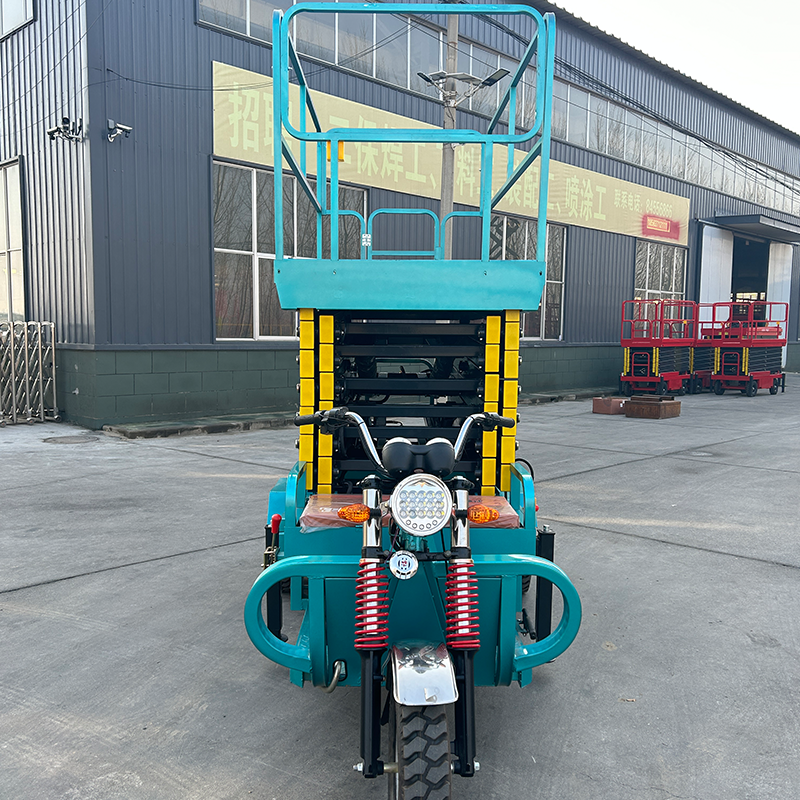

Vehicle-mounted tricycle lift Small electric lift with a height range of 4-12 meters Vehicle-mounted scissor lift platform
Product Introduction As solid as a rock for high-altitude operations, the frame is upgraded, with the entire machine featuring a custom thickened and reinforced special frame. Enhanced power and worry-free after-sales service. Suitable for various scenarios, including multiple high-altitude o...
Description
marker
Product Introduction
As solid as a rock for high-altitude operations, the frame is upgraded, with the entire machine featuring a custom thickened and reinforced special frame. Enhanced power and worry-free after-sales service.
Suitable for various scenarios, including multiple high-altitude operation environments, road maintenance hotels, road maintenance inspections, hotel resorts, indoor daily repairs, outdoor daily repairs, factory warehouses, logistics loading and unloading, and more. Convenient and efficient.
Made with manganese steel profiles, the design is reasonable, and the structure is sturdy. Custom thickened and reinforced frames specifically for heavy-duty electric tricycles ensure smooth travel with enhanced responsiveness. Power is strengthened with strong endurance capabilities.
The work platform features a safety guardrail, which can be customized to extend forward longitudinally, expanding the coverage area for operations and saving time and effort.
When idle, the operational guardrail can be folded, thickened, heightened, and detachable for convenient use, enhancing user safety.
Hydraulic lifting oil cylinder: High-quality, pressure-resistant cylinders with excellent sealing effectively avoid oil leakage issues. The polyurethane seal rings are durable, leakproof, resistant to high pressure, and high temperatures, enhancing lifting performance.
Lifting arm frame: Innovative use of connecting bracket technology increases the welding contact area for a larger force-bearing surface, offering enhanced safety.

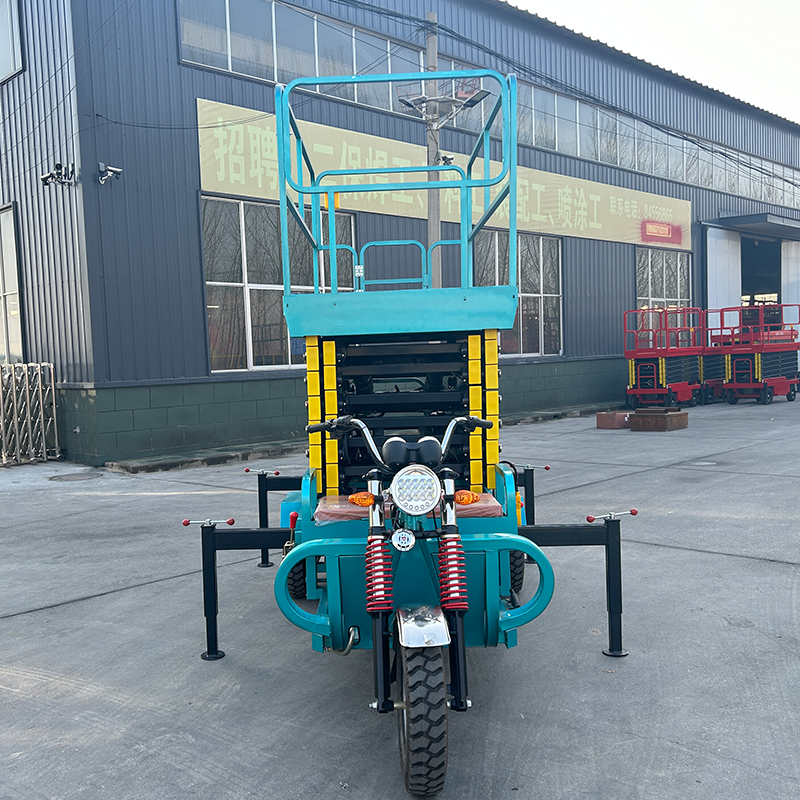

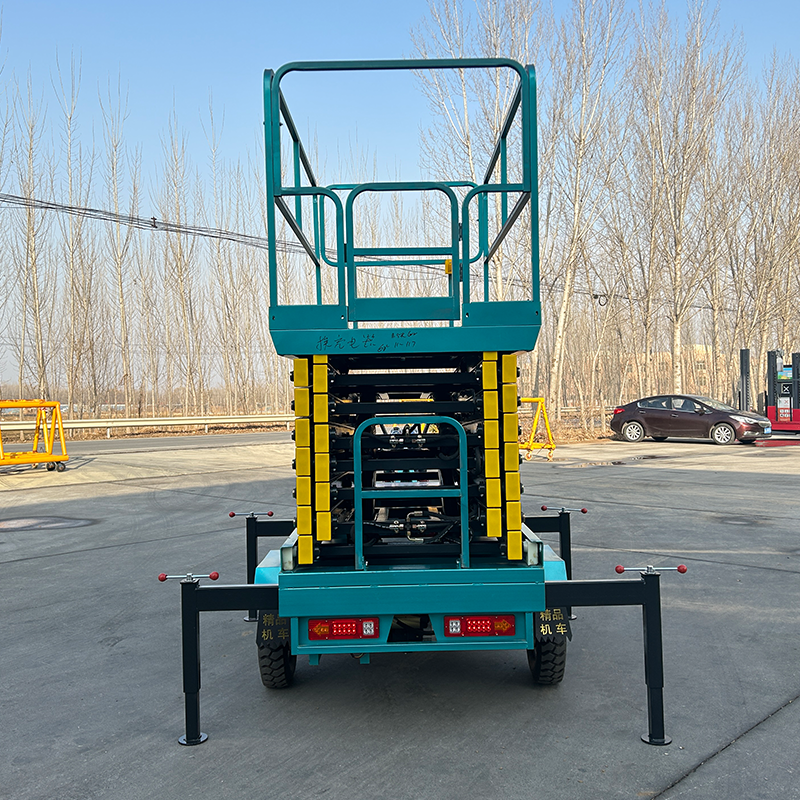

Telescopic safety legs: Integrated, pull-out safety legs are convenient to extend and retract, occupying minimal space while ensuring safety and stability.
Product Specifications
| Model | MPSJY0.5-4 | MPSJYO.5-6 | MPSJYO.5-6.8 | MPSJY0.5-8 | MPSJY0.5-9 | MPSJY0.5-10 | MPSJYO.3-11 | MPSJY0.5-11.5 |
| Platform specifications | ||||||||
| Maximum working height | 6m | 8m | 8.8m | 10m | 11m | 12m | 13m | 13.5m |
| Maximum platform height | 4m | 6m | 6.8m | 8m | 9m | 10m | 1lm | 11.5m |
| Safe working load | 500kg | 500kg | 500kg | 500kg | 500kg | 500kg | 300kg | 300kg |
| Maximum number of workers | 2～3 | 2～3 | 2～3 | 2～3 | 2～3 | 2～3 | 2～3 | 1～2 |
| Work platform dimensions | 2010*830mm | 2010*830mm | 2010*930mm | 2010*830mm | 2010*930mm | 2010*1130mm | 2010*1130mm | 2010*1130mm |
| Vehicle dimensions | ||||||||
| Overall vehicle height | 1270mm | 1370mm | 1370mm | 1470mm | 1590mm | 1650mm | 1780mm | 1780mm |
| Overall vehicle width | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1500mm | 1500mm | 1500mm |
| Overall vehicle length | 3300mm | 3300mm | 3300mm | 3300mm | 3300mm | 3530mm | 3530mm | 3530mm |
| Support range | 600mm | 600mm | 600mm | 600mm | 600mm | 600mm | 600mm | 600mm |
| Vehicle weight | ||||||||
| Overall weight | 1010kg | 1110kg | 1110kg | 1210kg | 1290kg | 1600kg | 1740kg | 1740kg |
| Power source | ||||||||
| Motor | 2.5KW | 2.5KW | 1.5KW | 1.5KW | 2.5KW | 2.5KW | 2.2KW | 2.2KW |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Battery | 12V/85AH | 12V/85AH | 12V/85AH | 12V/85AH | 12V/85AH | 12V/85AH | 12V/85AH | 12V/85AH |
| Tire | 450-12 | 450-12 | 450-12 | 450-12 | 500-12 | 500-12 | 500-12 | 500-12 |
|
Other and Safety |
||||||||
| Surface treatment | Shot blasting and sandblasting rust removal; removing rust and spatter from the surface of steel structural components, it can create a certain degree of unevenness on the surface of steel components, increasing the adhesion of powder. | |||||||
| Guardrail height | 30×30 square tube construction, height 1.1 meters | |||||||
| The parameters of this device are manually measured and may have inaccuracies. The specific details are subject to the actual device, and the final interpretation rights belong to this company. | ||||||||
Main product configurations
| Structure | Component Name | Specifications and Model | Instructions |
| Lifting structure | Panel | 3MM flat plate bending | Laser cutting, CNC bending, precise material cutting |
| Guardrail | Height 1100MM | 30×30 square tube manufacturing | |
| Tire | 500-12 inflatable tires
|
||
| Battery | 12V/85AH 5 batteries | 30×30 square tube manufacturing | |
| Motor | 2.2KW | ||
| Table Frame | 2MM flat plate bending | Laser cutting, CNC bending, precise material cutting
|
|
| Power Unit | 2.2KW DC48V50HZ | ||
| Hydraulic Cylinder | HSG70/45*4 | Durable and leak-proof | |
| Pull-out Support Leg | 100*50*3.75MM rectangular tube | Equipped with pull-out support legs, retractable at will | |
| Lifting Speed | Lifting: 4-6M/MIN | Adjustable descent speed |
