Product Introduction MPGTJZ1416 Scissor Lift Series: Maximum platform height 14m, rated load 227kg, machine weight 3300kg, extension platform rated load 110kg, maximum climbing ability 25%. Others: Dual-side forklift slots. Advantages 1.Intelligent. Visual human-machine interaction s...
Description
marker
Product Introduction

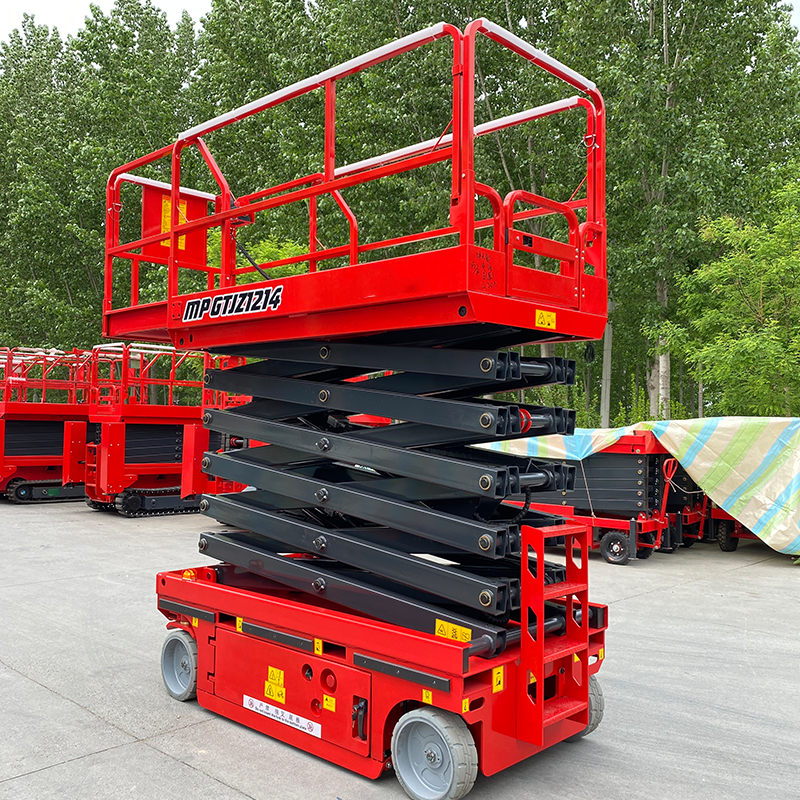

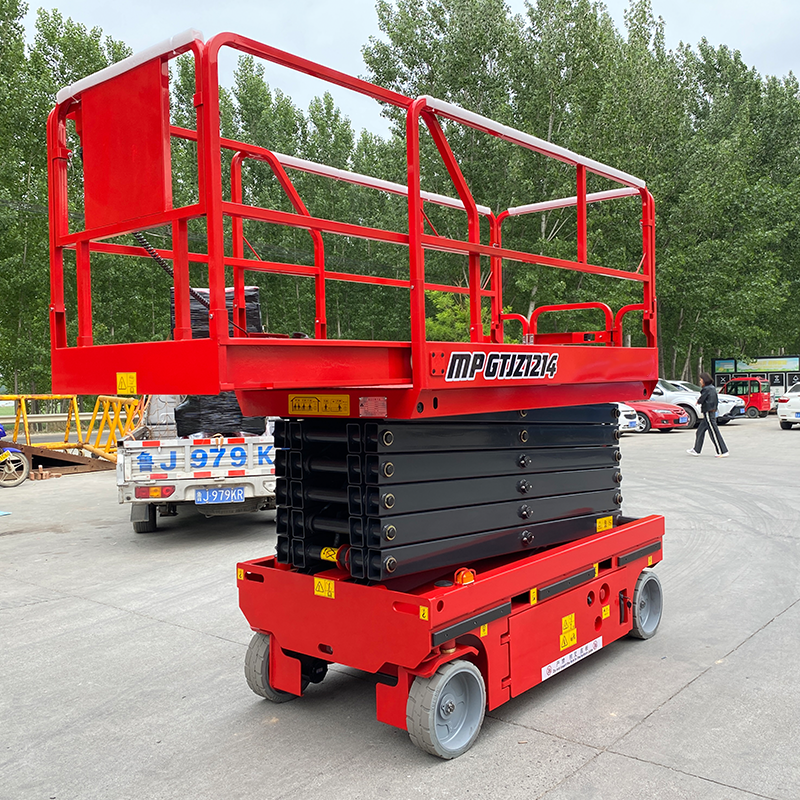

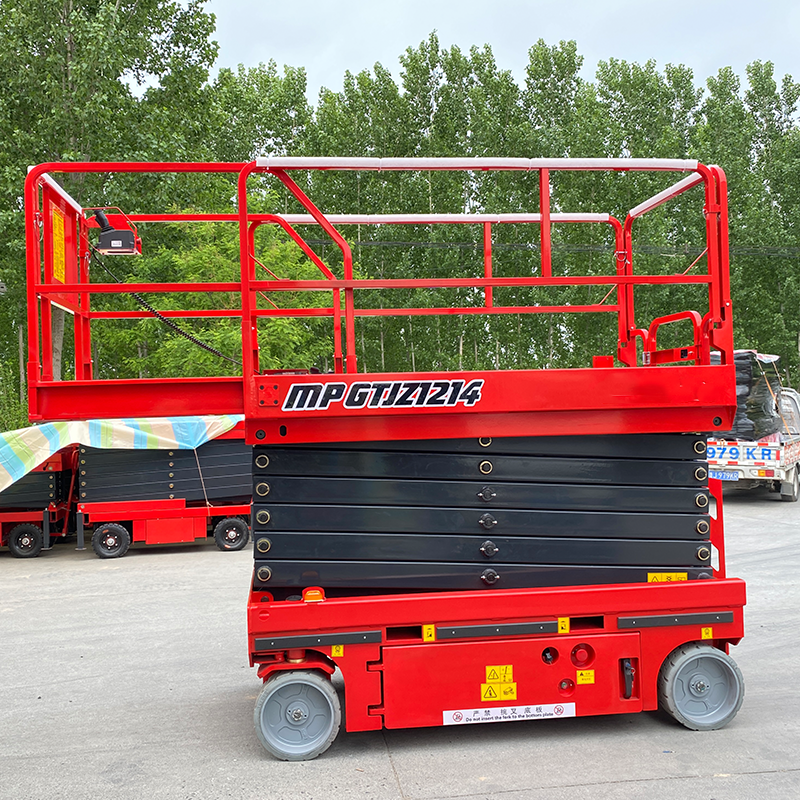

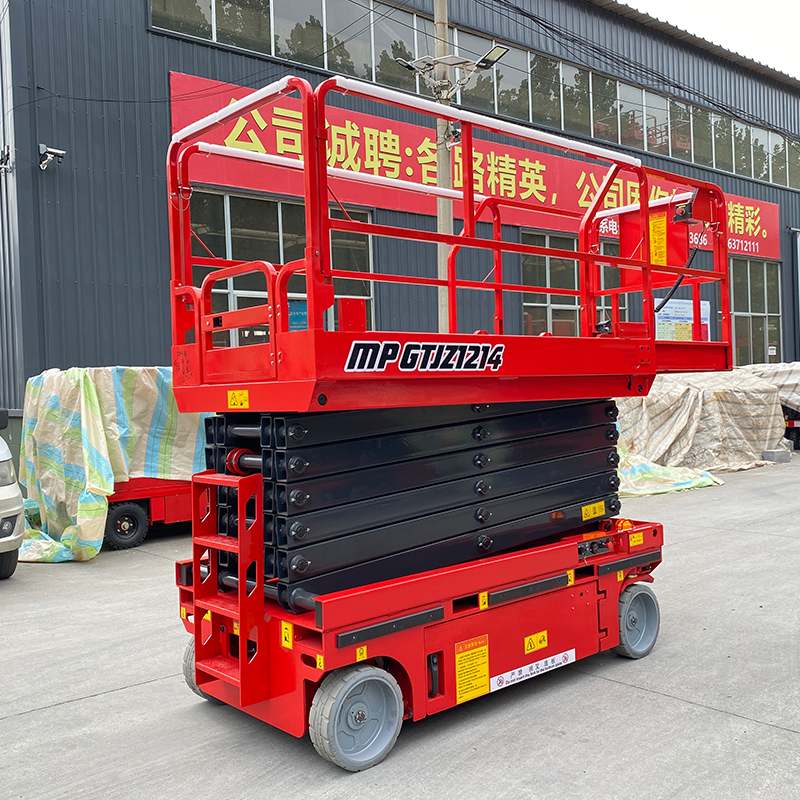

MPGTJZ1416 Scissor Lift Series: Maximum platform height 14m, rated load 227kg, machine weight 3300kg, extension platform rated load 110kg, maximum climbing ability 25%. Others: Dual-side forklift slots.
Advantages
1.Intelligent. Visual human-machine interaction system enables real-time monitoring and control of working status. Smart connectivity with automatic fault code display makes equipment management more convenient and efficient.
2.Modular. The entire series adopts modular design, with over 90% universal compatibility for scissor components, ensuring parts commonality across similar equipment.
3.Fine-tuned. Exquisite manufacturing craftsmanship ensures superior equipment quality. Refined wiring layout offers an elegant appearance and makes maintenance easier.
4.Highly Reliable. Electrophoretic coating + spray painting technology, IP67-rated waterproof electrical components provide rust-resistance and durability for worry-free usage. The widened scissor structure enhances stability, complemented by multiple safety measures for secure and reliable operation.
5.Highly Efficient. A 227kg high load capacity improves work efficiency. Both lifting and traveling are equipped with fully sealed AC motors as standard, offering higher efficiency, better energy savings, enhanced safety, easier maintenance, and lower overall costs.
6.Hassle-Free. Standard dual-side forklift slots make loading and unloading more convenient. The double-sided swing-out tray design simplifies maintenance and repairs.
Features
Extendable work platform
Standard dual-side forklift slots
Swing-out tray-style battery compartment
Refined layout
227kg high load capacity
Safety maintenance support
Product Parameters

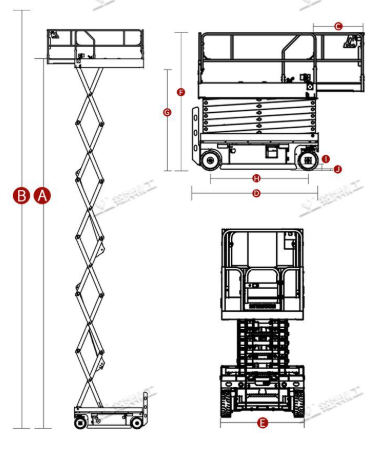

| Dimensions | |
| Maximum platform height （m） | 13.8 |
| Maximum working height(m) | 15.8 |
| Maximum horizontal reach(m) | 0.9 |
| Overall length (m) | 2.76 |
| Overall width(m) | 1.25 |
| Overall height (guardrail unfolded) (m) | 2.6 |
| Overall height (guardrail folded) (m) | 2.06 |
| Wheelbase (m) | 1.86 |
| Ground clearance (pothole protection plate retracted)( m) | 0.106 |
| Ground clearance (pothole protection plate extended) (m) | 0.029 |
| Platform dimensions (length × width × height) (m) | 2.63x1.13x1.1 |
| Performance | |
| Rated platform capacity (kg) | 227 |
| Rated extended platform capacity (kg) | 113 |
| Maximum number of occupants on platform | 2 people |
| Travel speed (retracted state) | 0-3.5 kmy/h |
| Travel speed (elevated state) | 0-0.8 kamyh |
| Climbing capacity | 25% |
| Maximum allowable tilt angle (front/back, left/right) | 3*/15° |
| Turning radius (inner wheel/outer wheel) | 0.1m/2.5m |
| Maximum allowable lateral force | 400N |
| Tire specifications/type | Ф381x127mm/Solid |
| Power | |
| Power unit motor (voltage/power) | 24VAC，3.4KW/24VDC，4.5KW |
| Hydraulic oil tank capacity | 20L |
| Battery | 24V200ah(Changeable) |
| System voltage | 24VDC |
| Control voltage | 24VDC |
| Charger (input voltage/output current) | 220VAC/30Aor 90-264VAC/30A |
| Weight | |
| Total weight of the machine | 3300kg |
Standard Configuration
Proportional control, automatic pothole protection system, platform self-locking door, full-stroke travel, non-marking tires, 4x2 drive extension platform, automatic braking system, emergency descent system, emergency stop button, hydraulic hose explosion-proof system, fault diagnostic system, tilt protection system, charging protection system, buzzer, horn, working hour meter, safety maintenance support rod, standard transport forklift slots, foldable guardrails.
