Self-propelled lift 4-meter electric drive hydraulic lift small mini aerial work vehicle fully self-propelled lift
Product Introduction MPGTJZD0406 Scissor Lift Series: Maximum platform height 4m, rated load 230kg, total machine weight 860kg, extended platform rated load 110kg, maximum climbing capability 20%. Others: Dual-side forklift design. Advantages 1.Intelligent. Visual human-machine interaction s...
Description
marker
Product Introduction

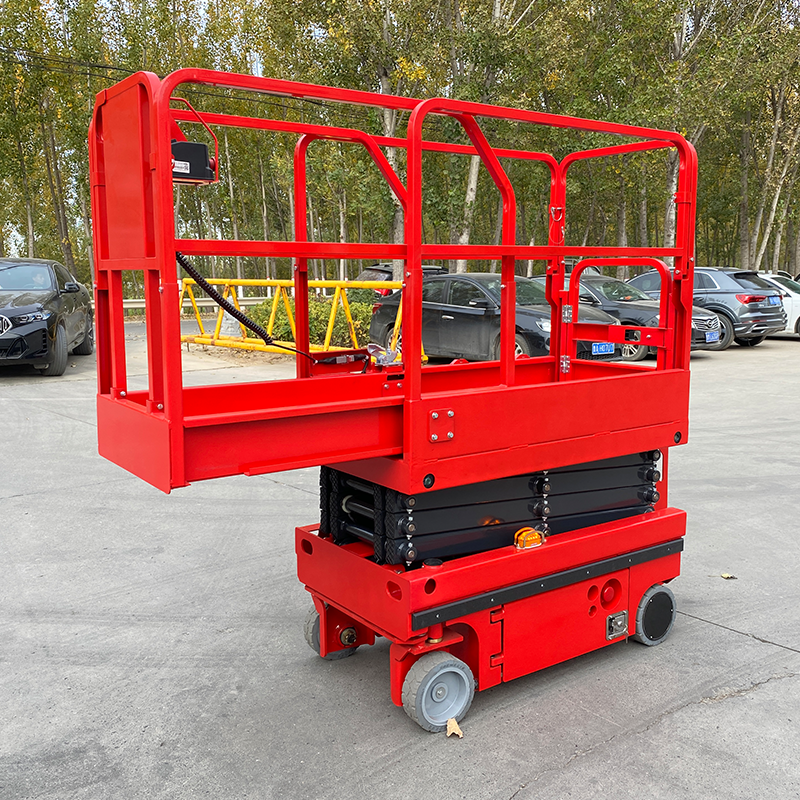

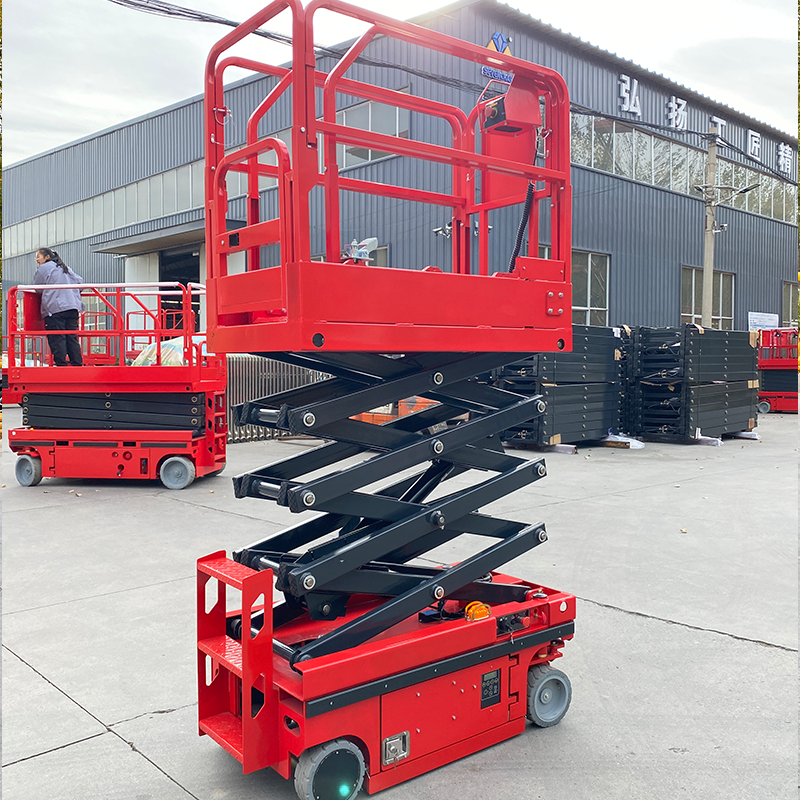

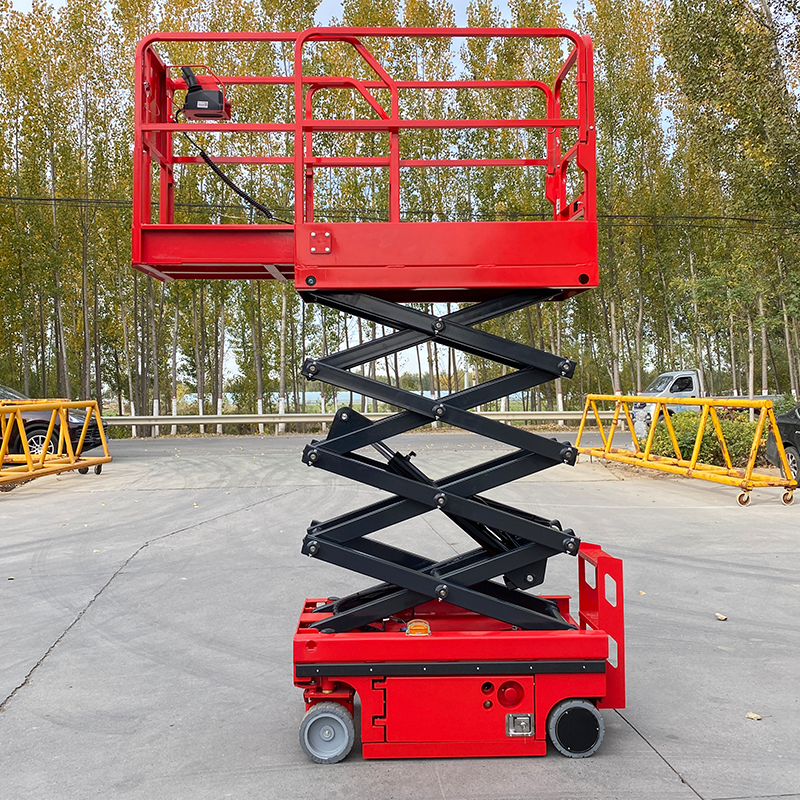

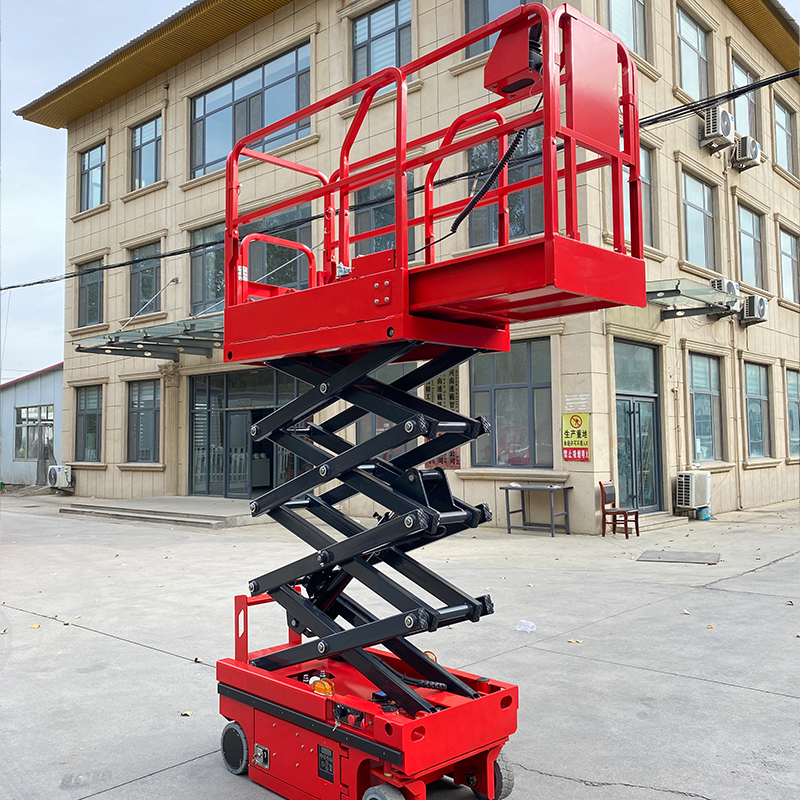

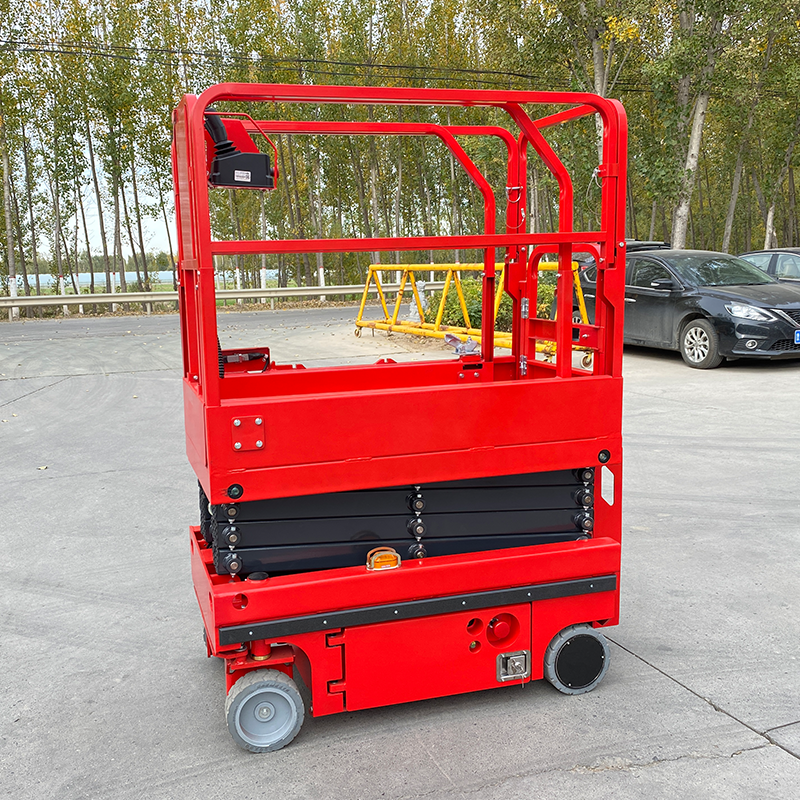

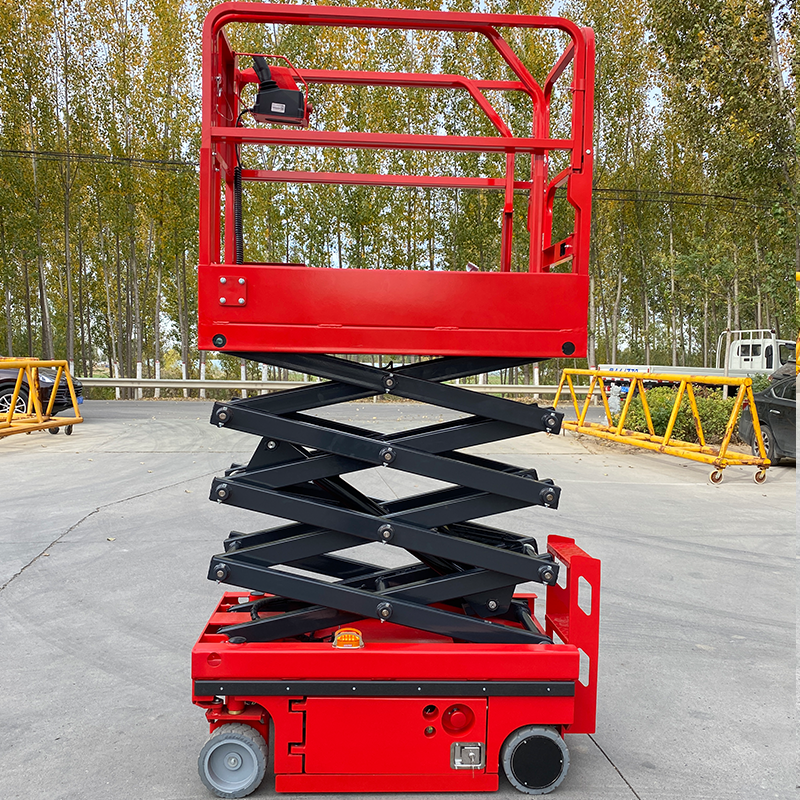

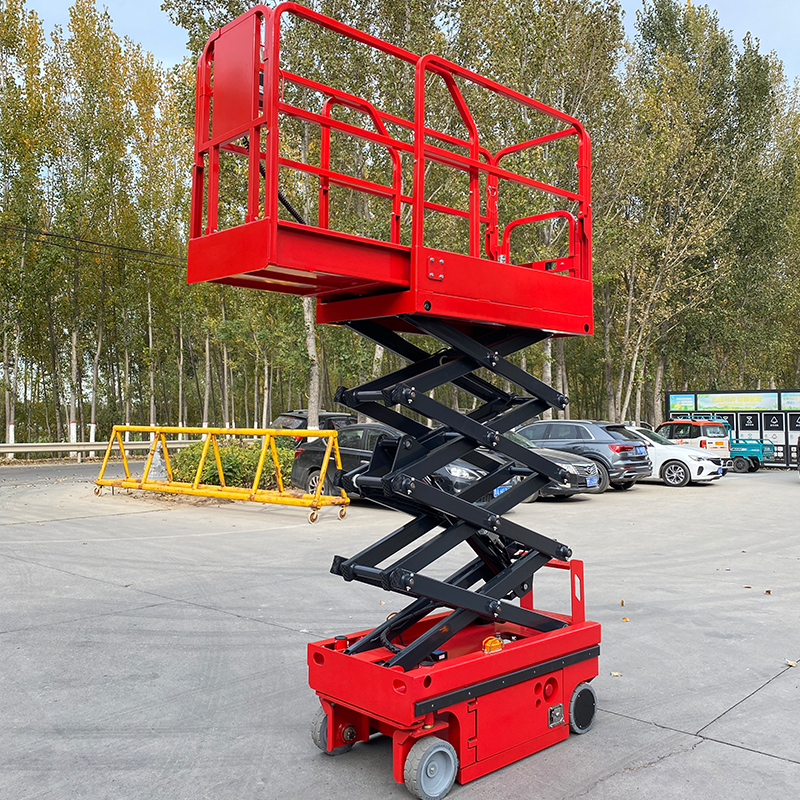

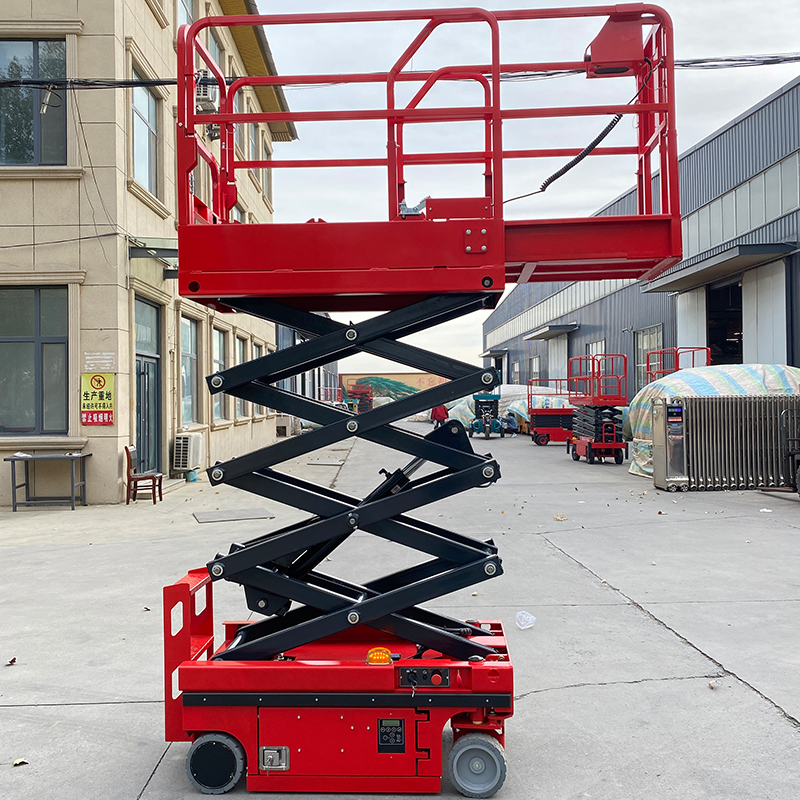

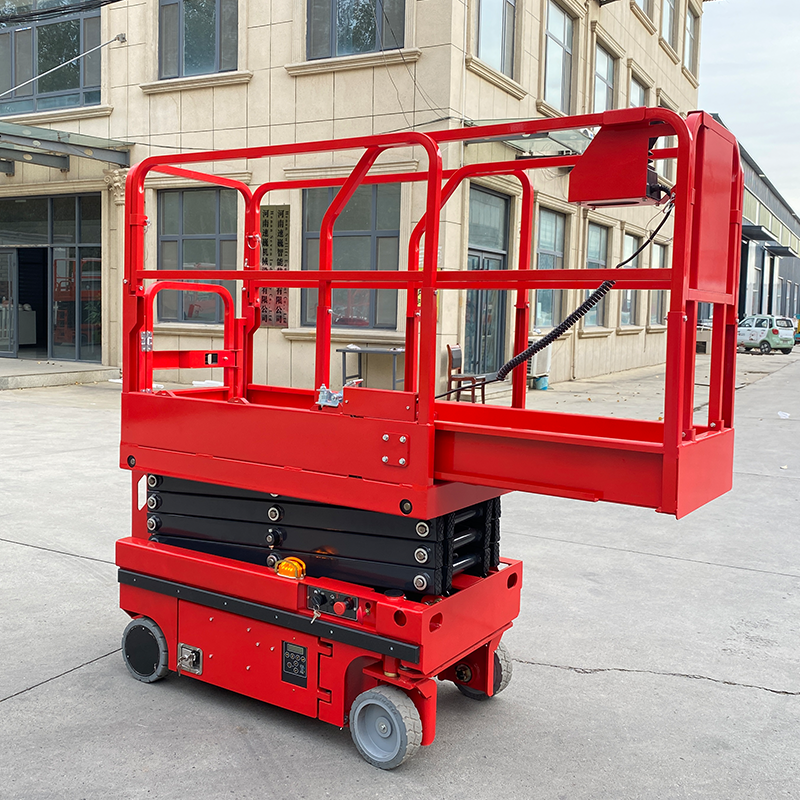

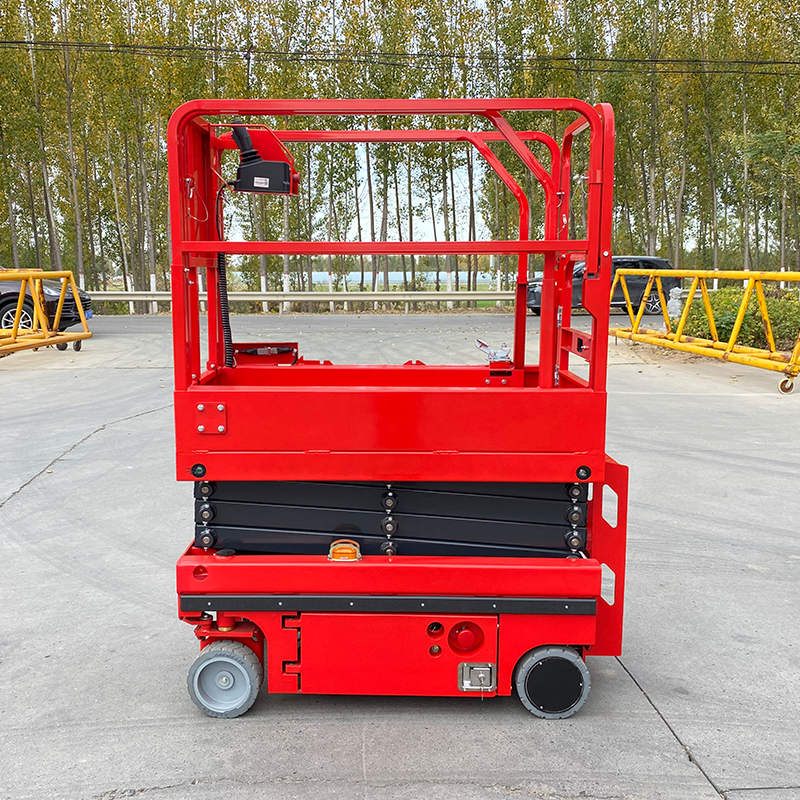

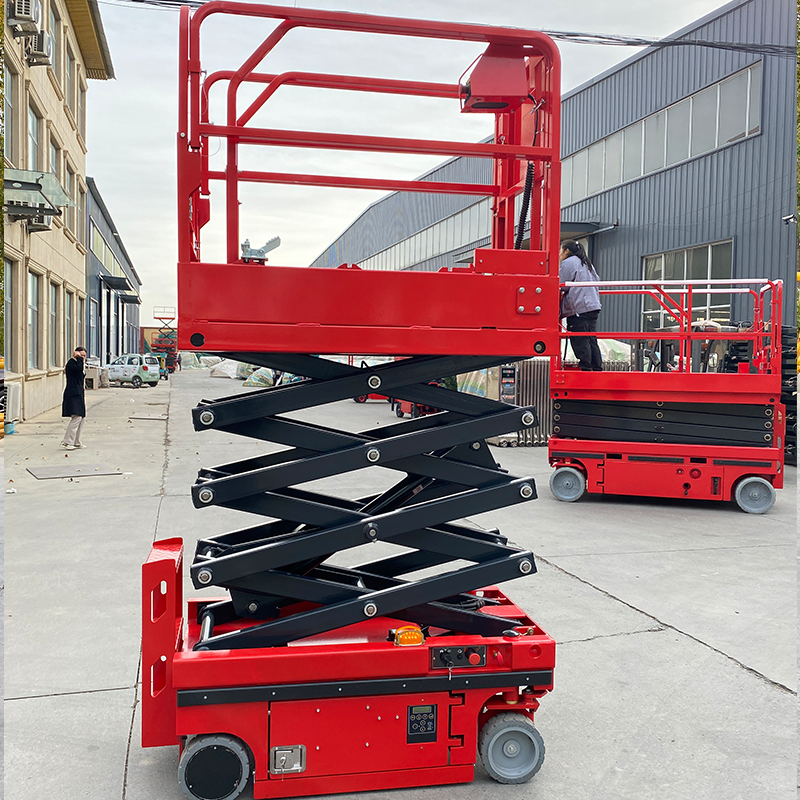

MPGTJZD0406 Scissor Lift Series: Maximum platform height 4m, rated load 230kg, total machine weight 860kg, extended platform rated load 110kg, maximum climbing capability 20%. Others: Dual-side forklift design.
Advantages
1.Intelligent. Visual human-machine interaction system, real-time monitoring and control of work status. Intelligent connectivity, automatic fault code display, making equipment management more convenient and efficient.
2.Modular. The entire series adopts modular design, with a scissor lift commonality rate exceeding 90%, and interchangeable parts across similar equipment models.
3.Refined. Exquisite manufacturing process for superior equipment quality. Streamlined wiring layout ensures aesthetics and facilitates easier maintenance.
4.Super Reliable. Electrophoresis + powder coating technology, IP67-rated waterproof electrical components for rust resistance and durability. Widened fork frame enhances stability, combined with multiple protective measures for safe and worry-free usage.
5.Highly Efficient. 227kg high load capacity improves work efficiency. Both lifting and movement are equipped with fully sealed AC motors as standard, optimizing overall operational performance for greater energy efficiency, safety, convenient maintenance, and cost savings.
6.Worry-Free. Standard dual-side forklift slots enable easier loading and unloading. Swing-out tray design on both sides simplifies maintenance and servicing.
Features
Retractable working platform
Standard dual-side forklift slots
Swing-out tray-style battery compartment
Streamlined layout
230kg high load capacity
Safety maintenance support
Product Specifications
| Dimensions | |
| Maximum platform height （m） | 3.8 |
| Maximum working height(m) | 5.8 |
| Maximum horizontal reach(m) | 0.9 |
| Overall length (m) | 1.44 |
| Overall width(m) | 0.7 |
| Overall height (guardrail unfolded) (m) | 1.86 |
| Overall height (guardrail folded) (m) | 1.46 |
| Wheelbase (m) | 1.02 |
| Ground clearance (pothole protection plate retracted)( m) | 0.106 |
| Ground clearance (pothole protection plate extended) (m) | 0.029 |
| Platform dimensions (length × width × height) (m) | 1.3×0.68×1.1 |
| Performance | |
| Rated platform capacity (kg) | 230 |
| Rated extended platform capacity (kg) | 113 |
| Maximum number of occupants on platform | 2 people |
| Travel speed (retracted state) | 0-3.5 kmy/h |
| Travel speed (elevated state) | 0-0.8 kamyh |
| Climbing capacity | 25% |
| Maximum allowable tilt angle (front/back, left/right) | 3*/15° |
| Turning radius (inner wheel/outer wheel) | 0.1m/2.5m |
| Maximum allowable lateral force | 400N |
| Tire specifications/type | Ф230x80mm/Solid |
| Power | |
| Power unit motor (voltage/power) | 24VAC，1.2KW/0.5KW |
| Hydraulic oil tank capacity | 4L |
| Battery | 24V85ah(Changeable) |
| System voltage | 24VDC |
| Control voltage | 24VDC |
| Charger (input voltage/output current) | 220VAC/30Aor90-264VAC/30A |
| Weight | |
| Total weight of the machine | 860kg |
Standard Configuration
Proportional control, automatic pothole protection system, platform self-locking door, full-travel walking, non-marking tires, 4x2 drive extension platform, automatic braking system, emergency descent system, emergency stop button, hydraulic hose explosion-proof system, fault diagnostic system, tilt protection system, charging protection system, buzzer, horn, working hour meter, safety maintenance support rod, standard transport forklift slots, folding guardrail.
